What is Fire Resistant Board ?

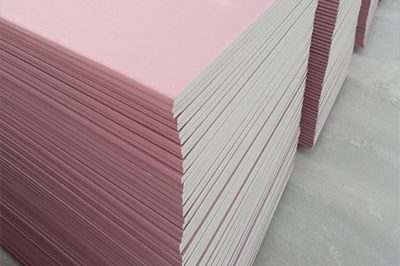

Fire Resistant Board Fire Resistant Boards, also known as FR Boards, are specially designed gypsum boards that provide excellent fire protection due to their unique core composition. Made from aerated gypsum, glass fiber, and additives, these boards have low thermal conductivity and high heat absorption, ensuring resistance to fire for 60 to 120 minutes, depending on thickness and installation. The strong pink-colored paper liners further enhance durability and fire resistance. Fire-resistant boards are widely used in both residential and commercial applications, including kitchens, server rooms, inverter rooms, and office spaces. Their easy installation, eco-friendly composition, and superior durability make them an essential choice for fire-prone areas in modern construction.

Applications of Fire Resistant Board

False Ceiling Protection image

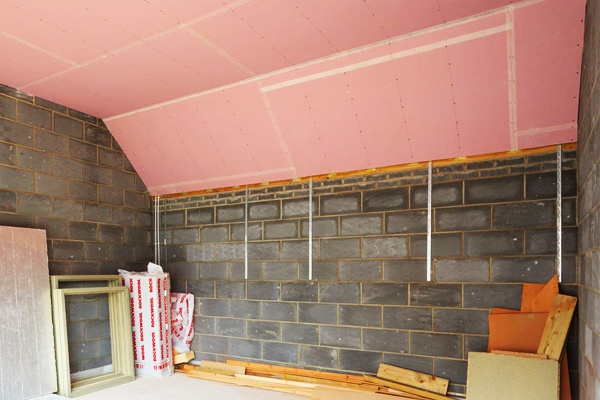

False Ceiling Protection

FR boards are ideal for false ceilings in fire-prone areas, offering enhanced safety and stability while maintaining a clean, seamless finish.

Drywall Partitions image

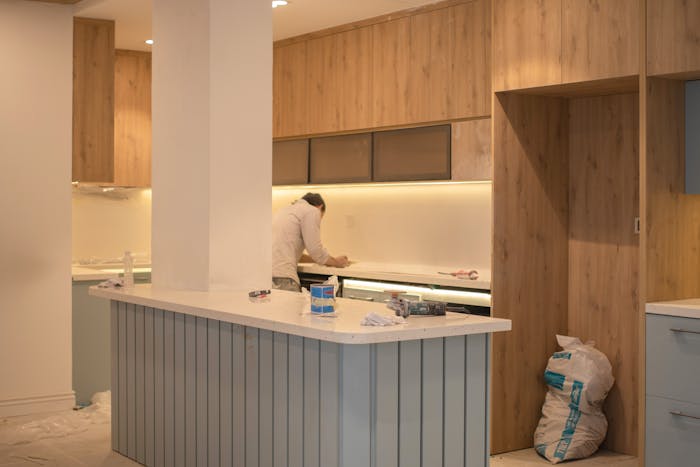

Drywall Partitions

Commonly used in server rooms, kitchens, and industrial spaces, fire-resistant drywall partitions prevent fire spread and improve overall building safety.

Heat-Resistant Wall Cladding image

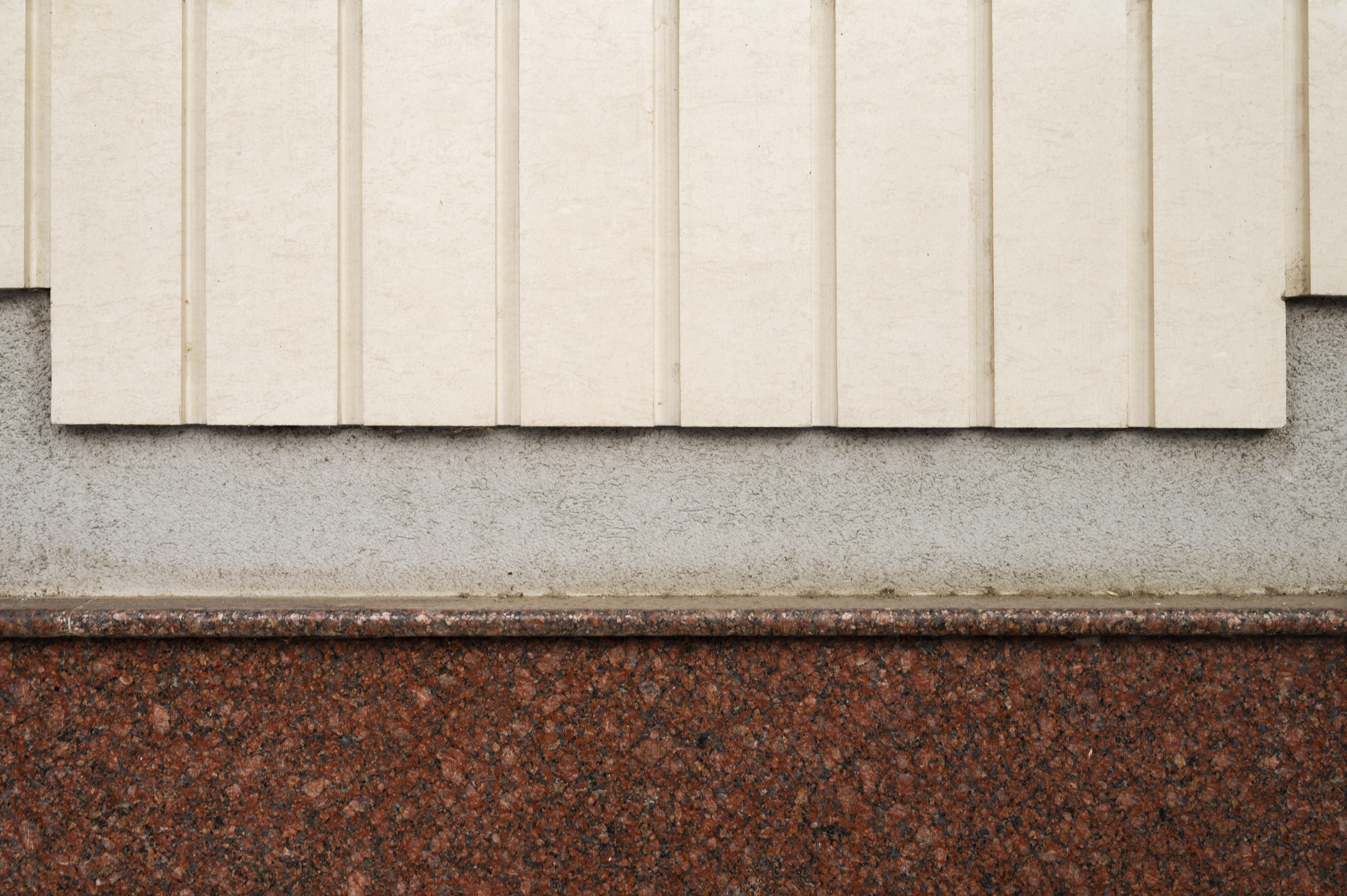

Heat-Resistant Wall Cladding

Used for wall cladding in commercial and residential spaces, these boards provide additional fireproofing and thermal insulation in high-risk areas.

Technical Details of Fire Resistant Board

Fire Rating

Compliant with BS 476: Part 4, 6 & 7, EN 13501-1, ASTM E136.

Thermal Conductivity

0.24 W/m°K for heat insulation.

Water Absorption

Less than 180 g/m² for moisture resistance.

Strength

Transverse: 210N (12.5mm), 250N (15mm); Longitudinal: 550N (12.5mm), 650N (15mm).

Nail Pull Resistance

>343N (12.5mm), >387N (15mm).

Edge Profile

Tapered edges along length, square edges along width.
